Digital Printer for Paperboard(boxi-800-A3 )
- Stock: 10000
- Model: boxi-800-A3
- Weight: 580.00kg
- SKU: 03.15.01.001.001
|
Model number |
BOXI-800 |
|
|
Print head confiquration |
HP A3 print head*1 |
|
|
Resolution |
1200*1200dpi/1200*600dpi/1200*400dpi/1200*300dpi |
|
|
Ink type |
Water-based ink |
|
|
Ink tank capacity |
CMYK |
1000ml/color |
|
Print range |
Nozzle print width 297mm, unlimited length |
|
|
Printing material range |
The maximum width of the material is 1000mm, the height is450mm, and the length is not limited |
|
|
Applicable material paper |
corrugated paper, card paper, kraft paper and other inkabsorption paper |
|
|
Print thickness |
450mm |
|
|
Interface type |
Network cable |
|
|
Voltage |
AC220V，50HZ-60HZ |
|
|
Rated power |
800W |
|
|
Print method |
Color only |
|
|
Print mode |
CMYK |
|
|
Printing speed |
High quality, variable printing |
10-20m/min |
|
Standard production mode |
30m/min |
|
|
High speed production mode |
40m/min |
|
|
Print software |
Boxi Print Tools |
|
|
Graphic format |
PDF/TIF/PG |
|
|
Printer dimension |
L*W*H |
1516mm*1605mm*1595mm |
|
N.W. |
370KG |
|
|
Packing size |
L*W*H |
1810mm*1760mm*1620mm |
|
G.W. |
580KG |
|
|
Working environment |
Temperature |
20℃-30℃ |
|
Humidity |
40%-80%(no gel) |
|
|
Noise |
Below 75dB |
|
- High-precision industrial printheads: equipped with Ricoh industrial-grade printheads, with clear and sharp printing, supporting grey scale printing, and adapting to a variety of corrugated paper materials.
- Environmentally friendly UV ink: fast curing, scratch-resistant and wear-resistant, suitable for food packaging, logistics boxes, custom packaging and other industries.
- Intelligent control system: self-developed control software, support for multi-language interface, easy to operate, strong stability.
- A variety of printing width options: support from 600mm to 1800mm a variety of models, to meet the needs of small, medium and large orders.
- Support variable data printing: achieve two-dimensional code, bar code, serial number and other personalised content one-key output.
- Energy saving and high efficiency: low energy consumption design, reduce operating costs, suitable for mass production.

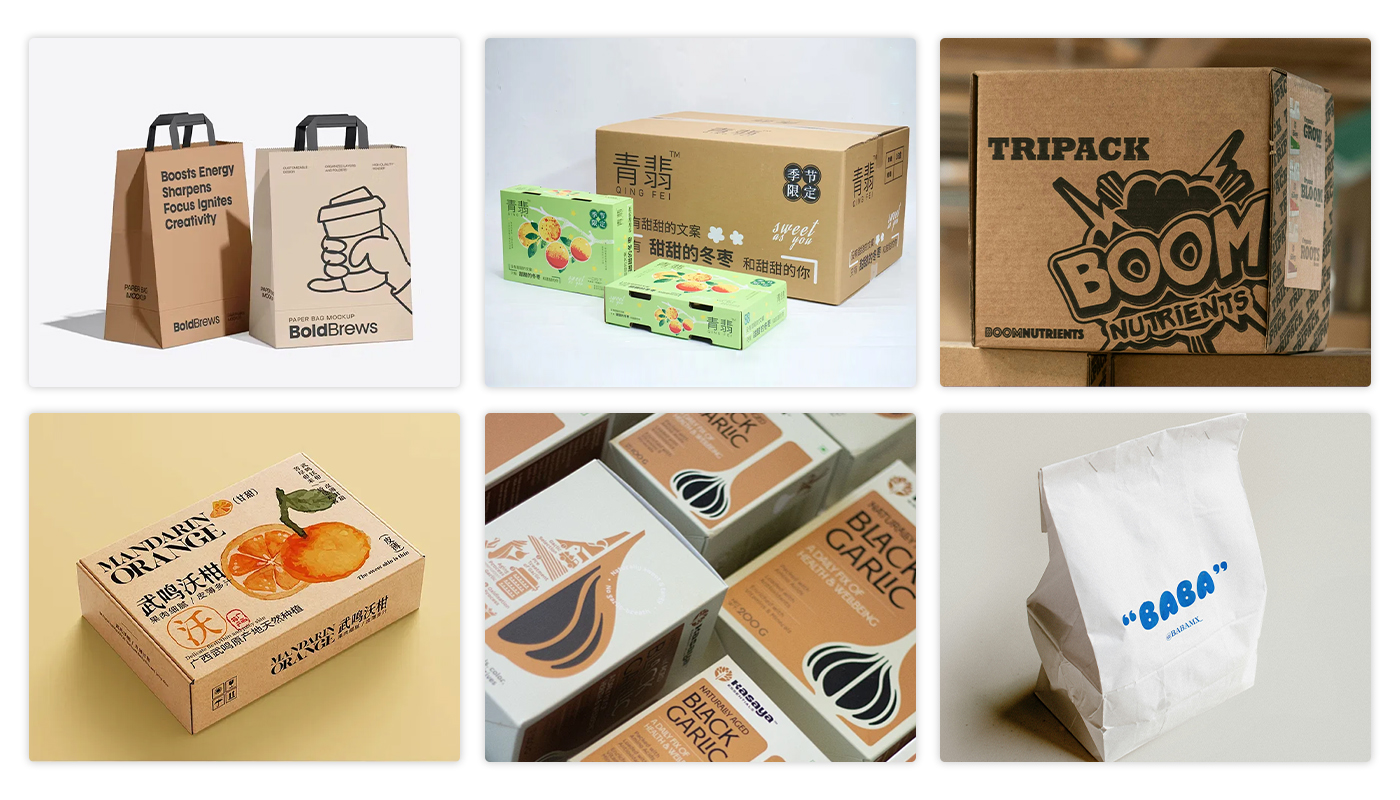

Application
E-commerce Express Packaging
Gift Box Customisation
Food Packaging Box
Logistics Transportation Outer Box
Beverage Carton Colour Printing
Why choose us?
- More than 10 years industrial inkjet experience
- Self-developed + national after-sales service
- Remote technical support, free training
- High customer repurchase rate
